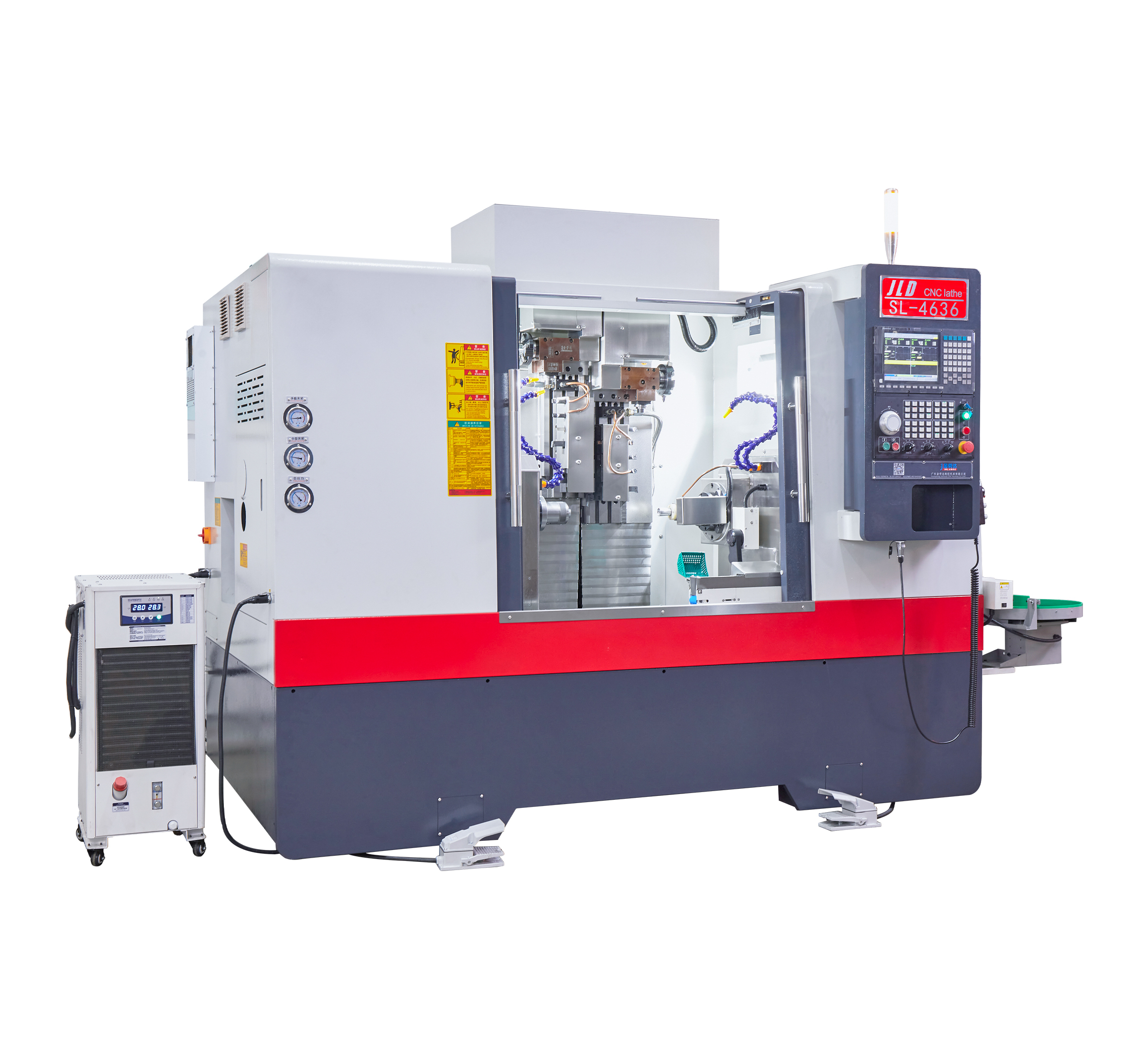

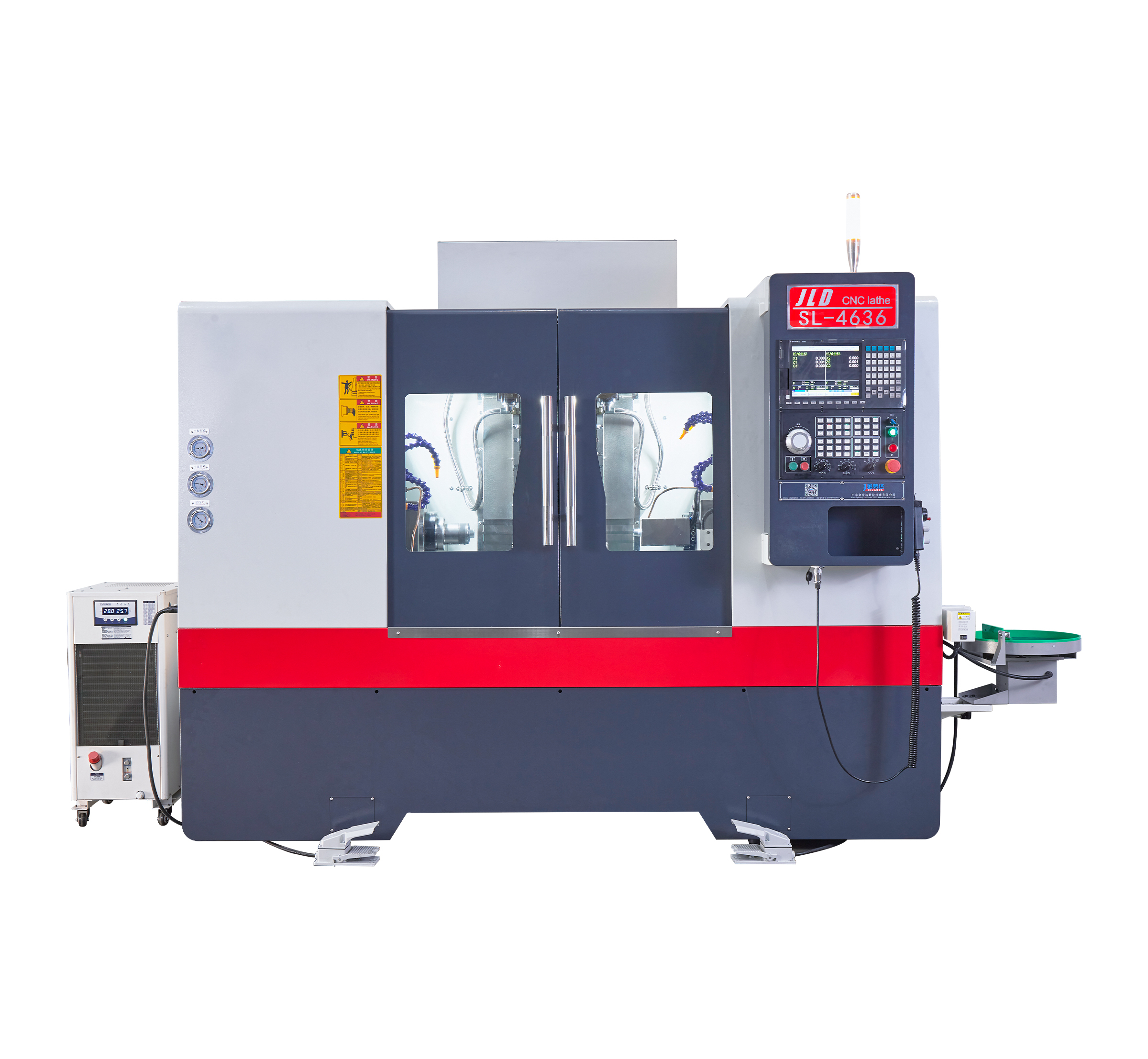

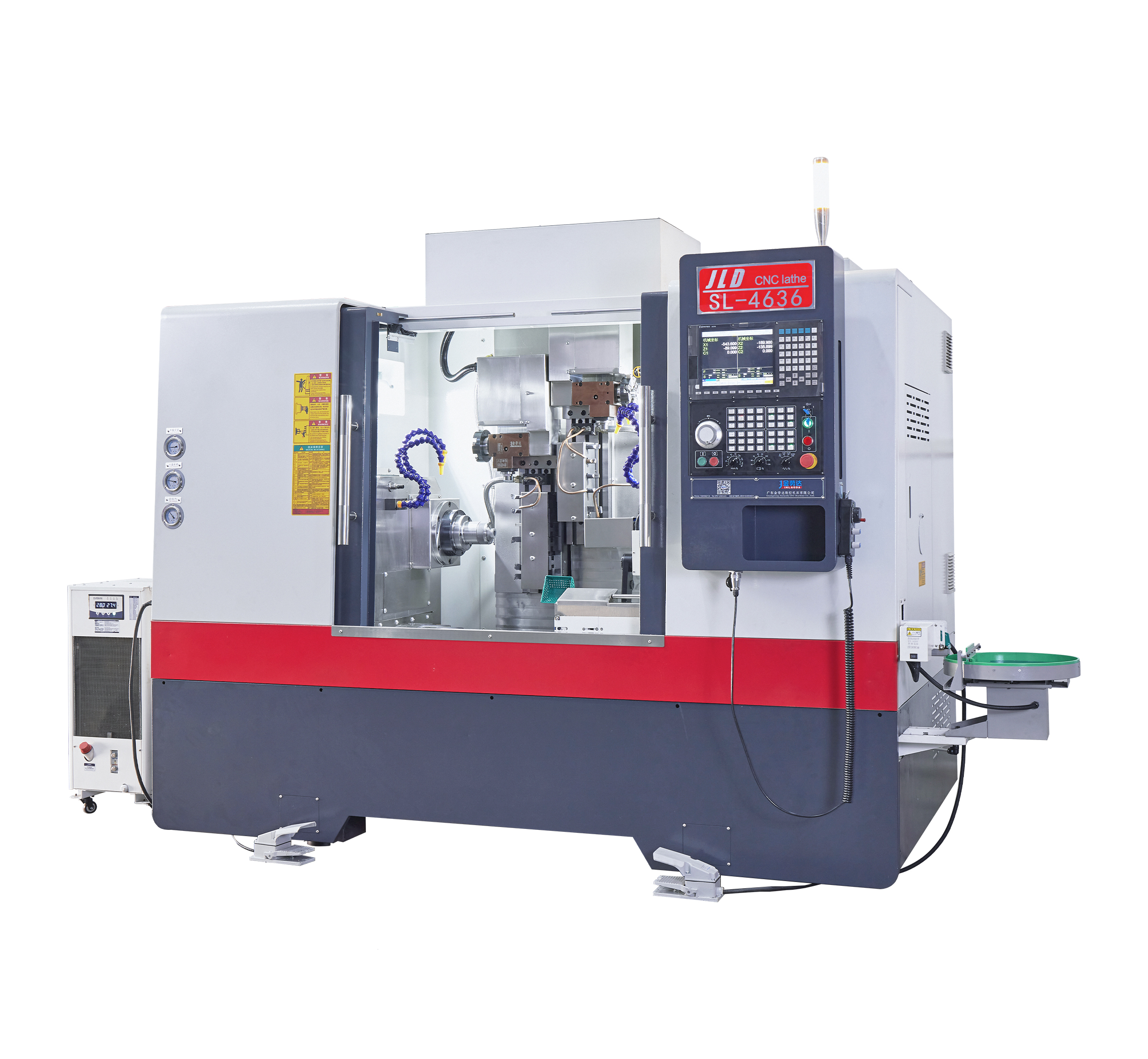

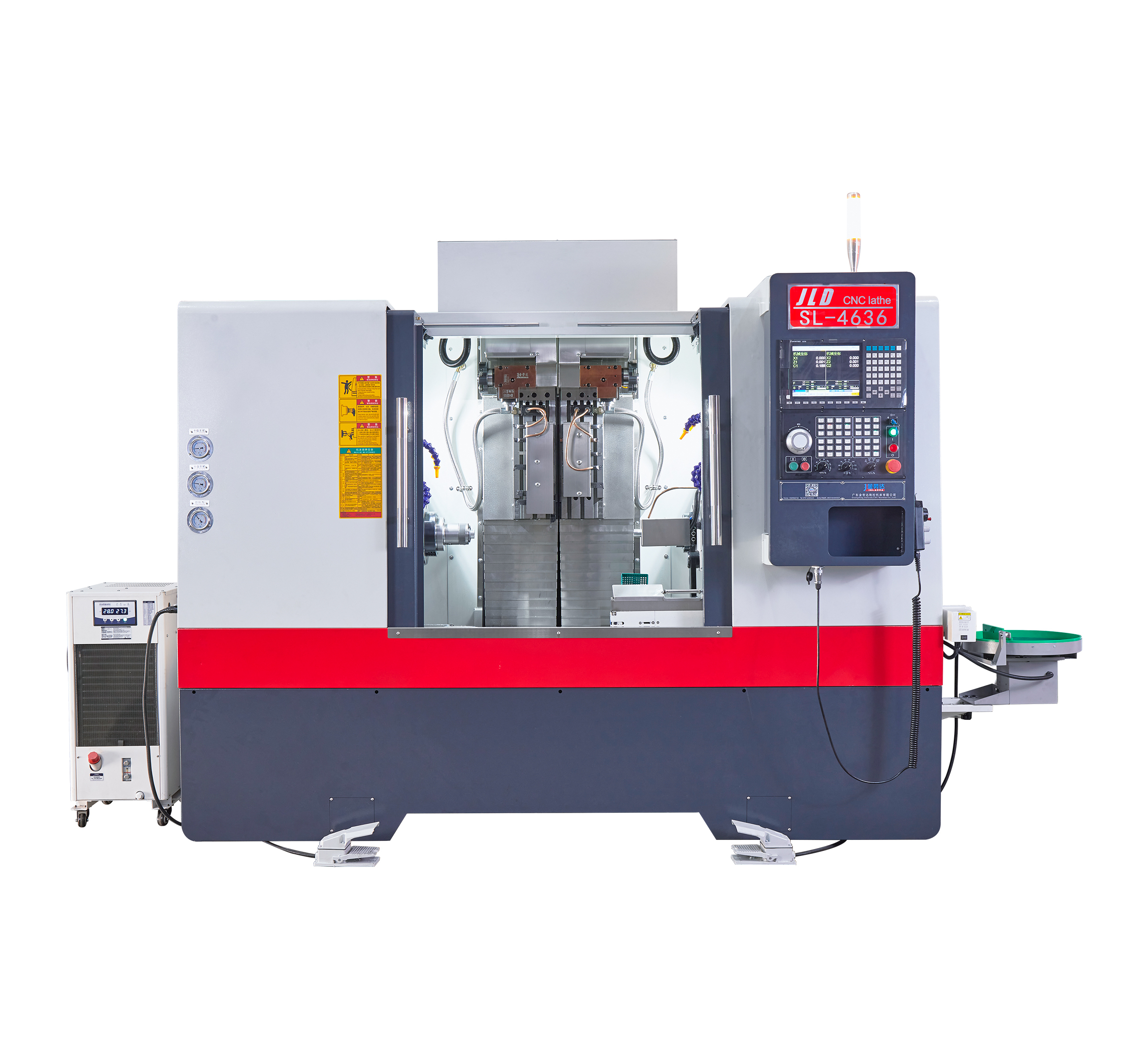

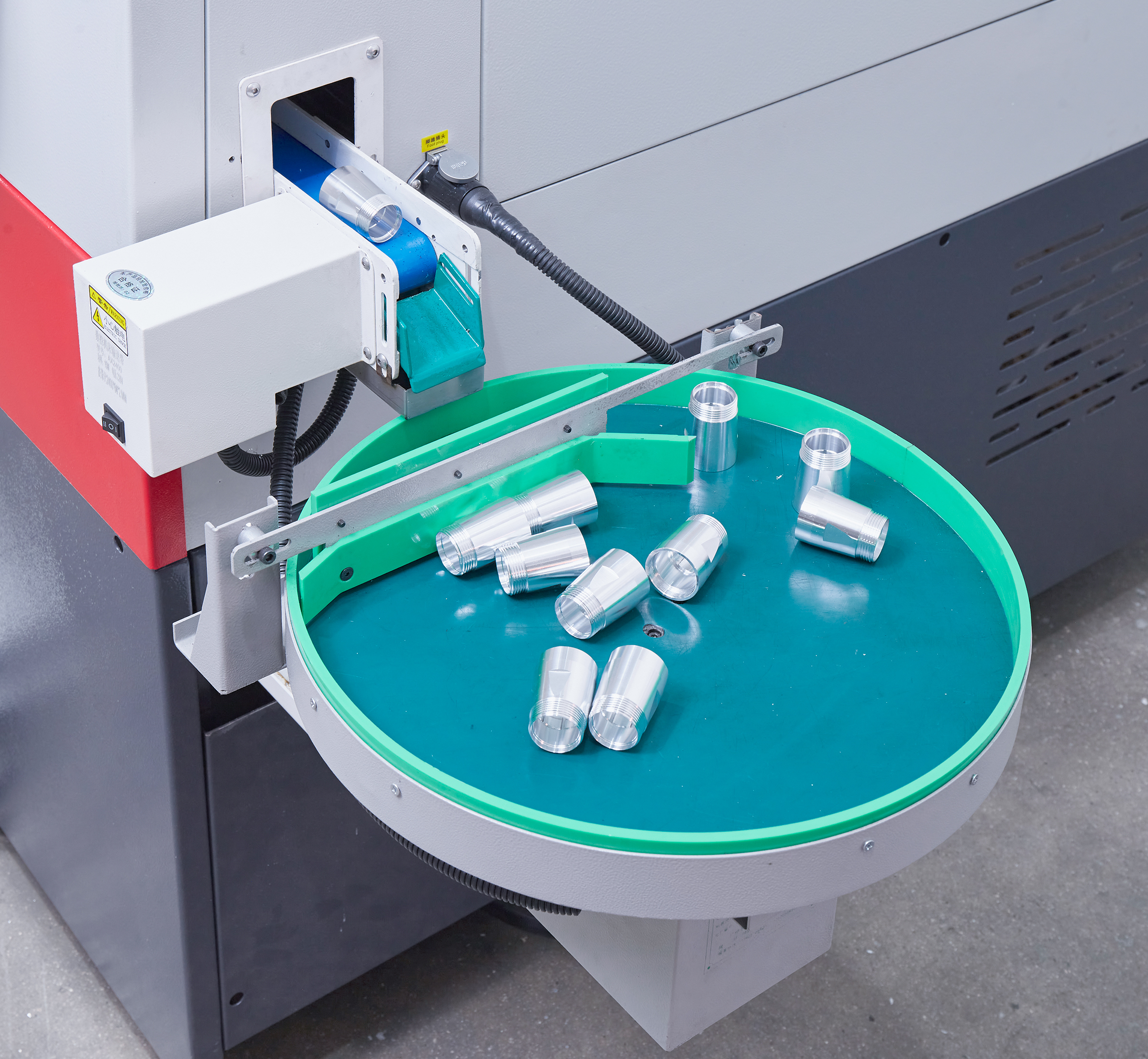

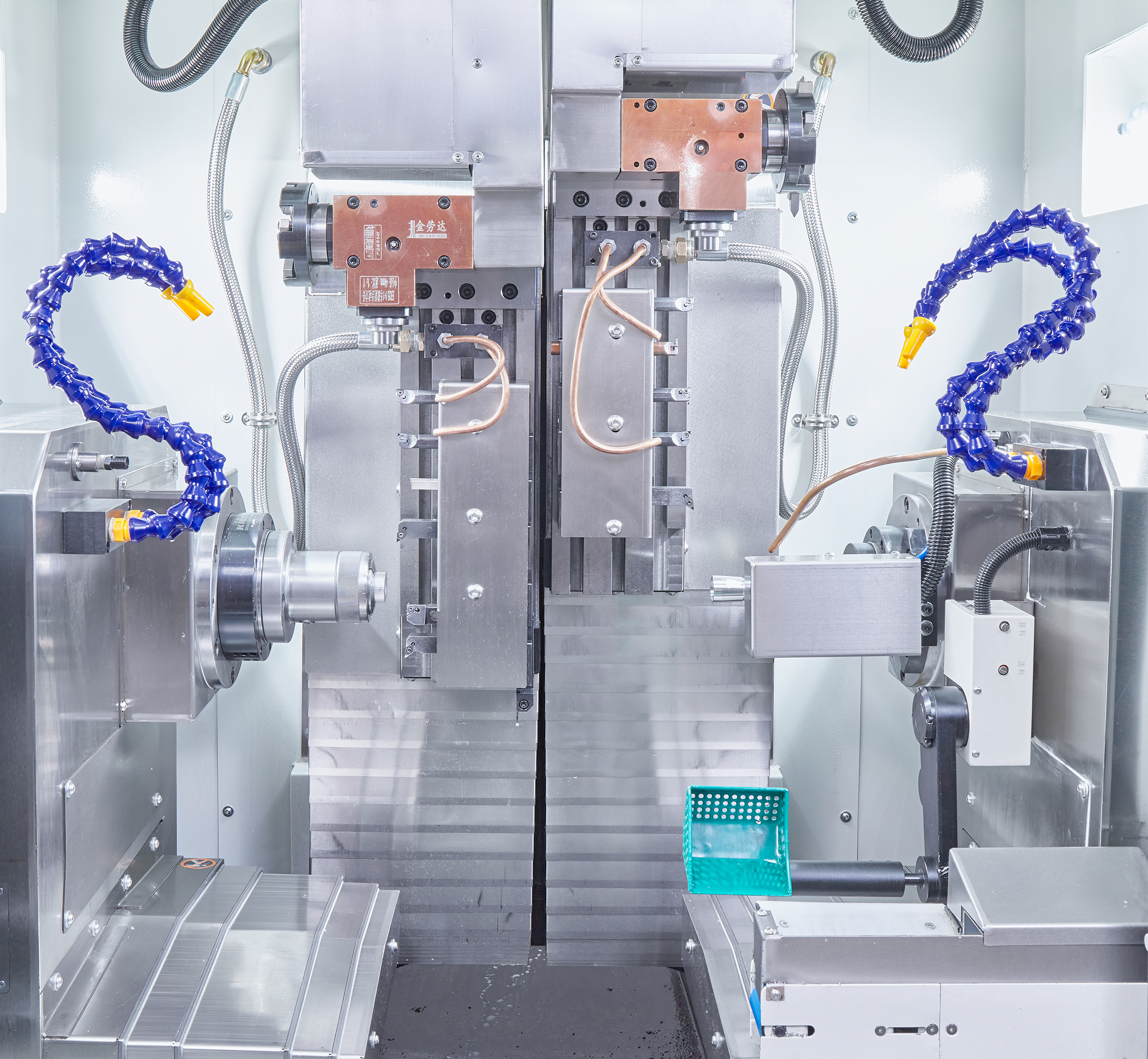

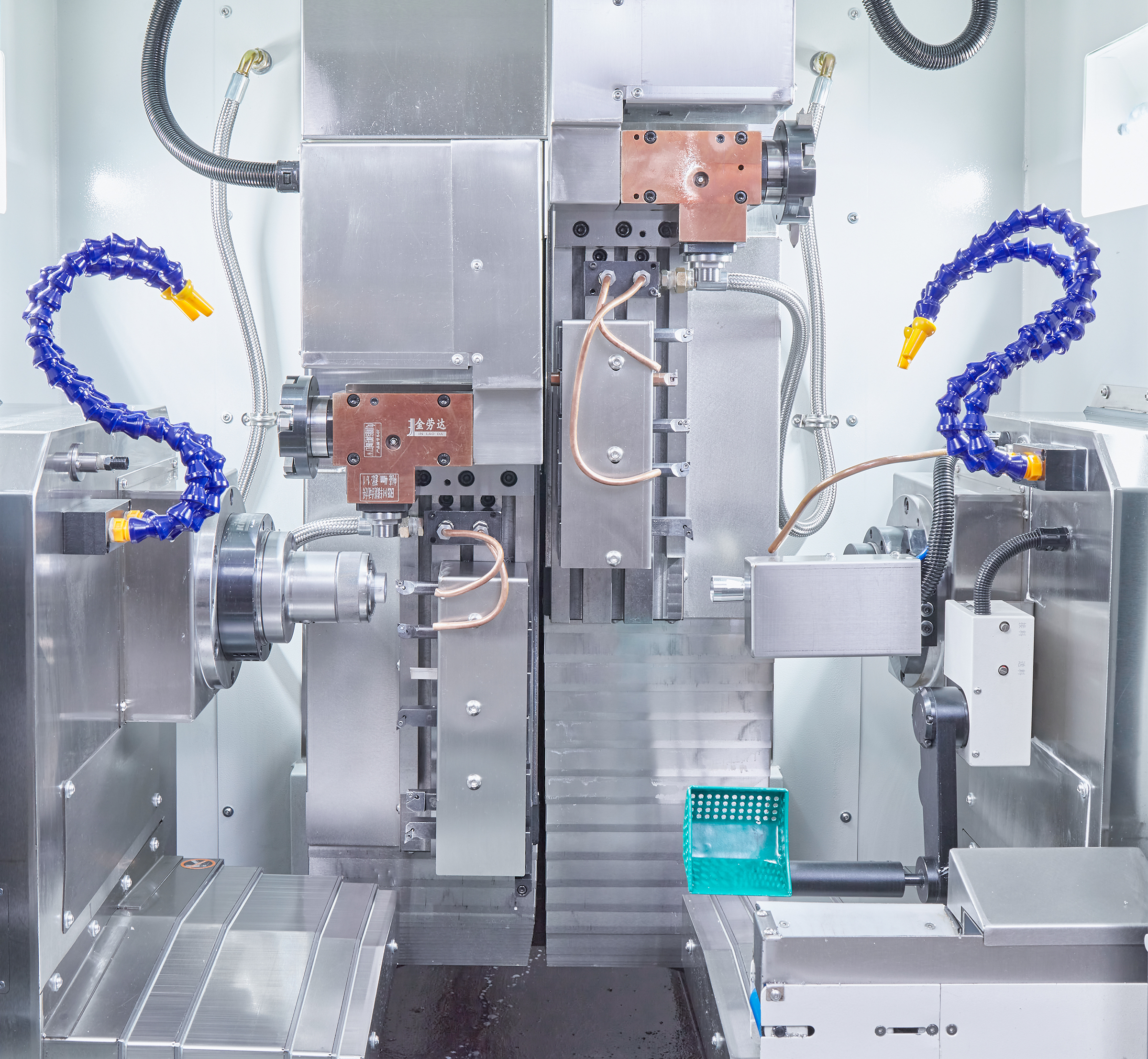

| LDS-4636SL-CFS-22TB Dual Electric Spindles Dual Vertical Linear Tool Square Turning CNC Lathe Parameters |
| Item |
Designation |
4636SL-CFS Double electric spindles dual vertical linear tool |
Brand |
Remark |
| Main-spindle SP1 |
Sub-spindle SP2 |
|
|
| Machining range |
Maximum swing diameter over bed mm |
Φ200 |
Φ200 |
|
|
| Maximum swing diameter over the slide mm |
Φ150 |
Φ150 |
|
|
| Maximum machining diameter (for Disc-type workpieces) mm |
Φ300 |
Φ300 |
|
|
| Maximum machining length of workpiece mm |
180 |
|
|
| Maximum bar through-hole diameter mm |
Φ45 |
Φ35 |
|
|
| Height from linear tool to spindle center |
80 |
80 |
|
|
| Stroke and maximum feed rate |
X-axis effective travel （radius） mm |
500 |
500 |
|
|
| Z-axis effective travel mm |
335 |
335 |
|
|
| X/Z-axis rapid traverse rate |
24m/min |
24m/min |
|
|
| Spindle |
Spindle nose type |
A2-5 |
A2-4 |
|
|
| Maximum spindle speed rpm |
5800 |
6000 |
|
|
| Electric spindle unit through hole |
Electric spindle Φ46 |
Electric spindle Φ36 |
|
|
| Chuck specification |
6 Inch |
5 Inch |
|
|
| Rotary hydraulic cylinder specification |
646 |
536 |
|
|
| Disdance from spindle center to floor mm |
1050 |
|
|
| Distance from spindle center to front door mm |
About 570 |
About 570 |
|
|
| Spindle repeat positioning accuracy |
≤10 arcseconds |
≤10 arcseconds |
|
|
| Spindle indexing accuracy |
≤70 arcseconds |
≤70 arcseconds |
|
|
| Machining accuracy |
X/Z-axis repeat positioning accuracy mm |
±0.003 |
±0.003 |
|
|
| X/Z-axis positioning accuracy mm |
±0.005 |
±0.005 |
|
|
| Power head specification |
Power head model number |
|
|
|
| Power tool / pieces |
2 |
|
|
| Power hear specification mm |
ER25 |
|
|
| Power head center height mm |
44 |
|
|
| Y-axis travel (mm) |
No |
|
|
| Electrical control |
Control System |
22TB |
SYNTEC |
Optional |
| Electric spindle KW |
11.76 |
8.99 |
|
|
| X-axis servo motor KW |
2.4（Am11） |
2.4（Am11） |
SYNTEC |
Optional |
| Z-axis servo motor KW |
2.4（Am11） |
2.4（Am11） |
SYNTEC |
Optional |
| Y-axis servo motor KW |
No |
SYNTEC |
Optional |
| Power head motor KW |
1.7KW |
SYNTEC |
Optional |
| Turret indexing motor KW |
No |
|
|
| Machine structure type and accessories specifications |
Bed structure type |
Integral casting flat bed |
|
|
| X-axis linear guide specification mm |
35 Roller |
35 Roller |
Hiwin,PMI |
|
| Z-axis linear guide specification mm |
35 Roller |
35 Roller |
Hiwin,PMI |
|
| X-axis lead screw diameter & pitch (mm) |
Φ3210 |
Φ3210 |
Hiwin,PMI |
|
| Z-axis lead screw diameter & pitch (mm) |
Φ3210 |
Φ3210 |
Hiwin,PMI |
|
| Overall dimensions |
L×W×H mm |
2650*2100*2110 |
|
|
| Net weight KG |
3500 |
|
|
